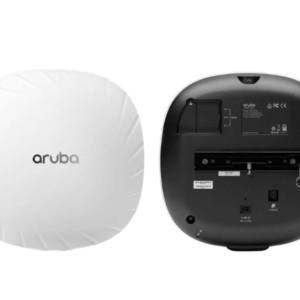

HPE Aruba Networking AP-535: Enterprise-Grade Wi-Fi 6 Access Point
Product Overview
The HPE Aruba Networking AP-535 is a high-performance Wi-Fi 6 (802.11ax) access point designed for demanding enterprise environments where reliable, high-speed wireless connectivity is crucial. With a combined peak data rate of up to 2.97 Gbps, this dual-radio access point delivers exceptional performance for organizations with growing IoT and mobility demands.
Enterprise-Class Performance
The AP-535 features advanced Wi-Fi 6 capabilities including 4×4 MIMO and OFDMA technology, enabling efficient multi-user communication and simultaneous data transmission. Supporting up to 1024 associated client devices per radio (2048 total), this access point excels in high-density deployments such as corporate campuses, educational institutions, and healthcare facilities.
IoT-Ready Infrastructure
Built with future scalability in mind, the AP-535 comes equipped with integrated Bluetooth 5.0 and Zigbee (802.15.4) radios, enabling seamless IoT integration for location services and asset tracking applications. This eliminates the need for separate IoT network overlays, reducing deployment complexity and cost.
Advanced Security Features
Security is paramount in enterprise environments, and the AP-535 delivers with WPA3 certification, Enhanced Open security protocols, and a built-in Trusted Platform Module (TPM) for secure credential storage. The integrated Policy Enforcement Firewall (PEF) ensures robust traffic management and security policy enforcement.
JZ336A Mount Kit Choice
| SKU | Description |
|---|---|
| R3J15A | AP-MNT-A Campus AP mount bracket kit (individual) type A: suspended ceiling rail, flat 9/16 |
| R3J16A | AP-MNT-B Campus AP mount bracket kit (individual) type B: suspended ceiling rail, flat 15/16 |
| R3J17A | AP-MNT-C Campus AP mount bracket kit (individual) type C: suspended ceiling rail, profile 9/16 |
| R3J18A | AP-MNT-D Campus AP mount bracket kit (individual) type D: solid surface |
| R3J19A | AP-MNT-E Campus AP mount bracket kit (individual) type E: wall-box |
| S4K79A | HPE Aruba Networking AP-MNT-U Campus Access Point Type U Universal Mount Bracket Kit |
JZ336A Power Injector
| SKU | Description |
|---|---|
| R1C73A | AP-POE-BTSR 1-Port Smart Rate 802.3bt 60W midspan injector |
| S3J26A | HPE Aruba Networking AP-POE-BT10 1-Port Smart Rate 802.3bt 60W midspan injector |
| R3K01A | AP-AC2-48C 48V/50W AC/DC desktop style power adapter with 1.35/3.5 mm connector |
JZ336A Accessories
| SKU | Description |
|---|---|
| JY728A | AP-CBL-SERU Micro-USB TTL3.3V to USB2.0 AP Console Adapter Cable |
| R6Q99A | AP-MOD-SERU Micro-USB TTL3.3V to RJ45 RS232 AP Console Adapter Module |
| R2X45A | HPE Aruba Networking AP-USB-ZB External USB based Dongle with Zigbee and BLE for AP |
| R2Y09A | HPE Aruba Networking AP-USB-ZB 10-pk External USB based Dongle with Zigbee and BLE for AP |
| R2Y10A | HPE Aruba Networking AP-USB-ZB 50-pk External USB based Dongle with Zigbee and BLE for AP |
| R8F34A | HPE Aruba Networking USB LTE Modem for use with Access Points and Gateways |
| R8G76A | HPE Aruba Networking USB Extender Cable Kit for use with HPE Aruba Networking USB LTE Modem |
JZ336A AP-535-RW Specification
| JZ336A AP-535-RW | |
|---|---|
| Description | HPE Aruba Networking AP-535 (RW) Dual Radio 4x4:4 802.11ax Internal Antennas Unified Campus AP |
| 5GHz Radio Data Rate | 2.4 Gbps |
| 2.4GHz Radio Data Rate | 1.12 Gbps |
| BSSIDs | 16 |
| Client per Radio | 1024 |
| Interface Description | 2x RJ45 |
| 0.1/1/2.5/5 Gbps | |
| MIMO | 4x4(2x2 for 2.4GHz Radio) |
| Spatial Stream | 4 |
| Min Power Comsumption | 30 Watt |
| Min Power Consumption Description | USB port disable, second (other) Ethernet port disabled. IPM feature to optimize performance and functionality when the available power budget is limited |
| Antenna Type | Internal Antenna |
